Garage Lighting Solution

The GPT garage lighting solution is a series of lamps and light fixtures with AI self-learning networking capabilities. Simply replace the existing products to achieve smart control of garage lighting, providing a comfortable and energy-efficient lighting experience.

Construction Period

2 days

Energy-Saving

65~90%

Payback Period *

8~20 months

* Payback period calculated based on project costs and electricity prices in China, may vary in different countries.

By using radar sensing, Bluetooth networking, and AI collaboration, the system can continuously track vehicle flow changes according to the garage environment, predict lighting paths, and implement smart control features such as energy-efficient operation when no one is around. This provides a comfortable and energy-efficient lighting experience.

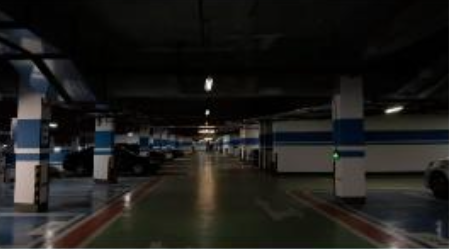

No Vehicles

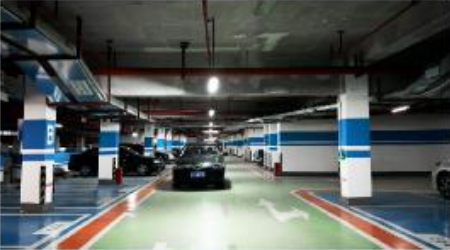

Vehicle Passing

Parking

Installation

Installation is similar to that of regular lighting fixtures or light tubes; simply replace them for completion.

No Additional Wiring Required: No need to alter the power supply lines or add control circuits.
Network-Free Setup: Uses Bluetooth broadcast technology for communication, eliminating the need for network connection setup.
Plug-and-Play: Pre-set parameters at the factory, no configuration required by customers; plug and use.

Installation Diagram

AI Networking Example

System Architecture

The system architecture of the GPT garage lighting solution is as follows:

Only one edge server is required for an garage, with a single server capable of supporting up to 3000 lights.

GPT's energy-saving lighting solution can autonomously detect abnormal lights and automatically disconnect from the network to stop interconnection with other lights. After replacing the faulty light, it will automatically reconnect to the network and resume interconnection.

Autonomous Detection

Automatic Networking

The system supports one-click adjustment of energy-saving settings, as shown in the figure below for different levels of lighting range under various energy-saving rates.

Energy-Saving Rate 70%

Energy-Saving Rate 90%

Energy Saving and Payback

Project	T8 Fluorescent Lamp	T8 LED Lamp	GPT Solution	Note
Rated Power	40W	18W	18W	-
Actual Power	40W	18W	1.8W~15W	No Presence: 10%, Presence: 80%
Average Power	40W	18W	3W	GPT equivalent operating time 4 hours per day
Number of Lamps	1,000pcs	1,000pcs	1,000pcs	-
Total Power	40,000W	18,000W	3,000W	-
Annual Electricity Consumption	350,400KWH	157,680KWH	26,280KWH	Calculated on a 365-day basis with daily operation of 24 hours

Compared to T8 fluorescent lamps, the GPT solution saves 90% in energy consumption; compared to T8 LED lamps, it saves 83%.

Taking an example project in China:

Fluorescent lamp renovation project: saves RMB 250,000 in electricity annually and recovers investment within 5 months.
LED lamp renovation project: saves RMB 150,000 in electricity annually and recovers investment within 8 months.
